S-type

PreviousI-typeNextB-type

Last updated 8 months ago

S-type instructions are used for store.

S-Format Instruction Layout

  • Mem[Reg[rs1] + offset] <- Reg[rs2]

Immediate in two parts

  • Can't have both rs2 and immediate in same place as other instructions

  • RISC-V design decision is move low 5 bits of immediate to where rd field was in other instructions - keep rs1/rs2 fields in same place

    • register names more critical than immediate bits in hardware design

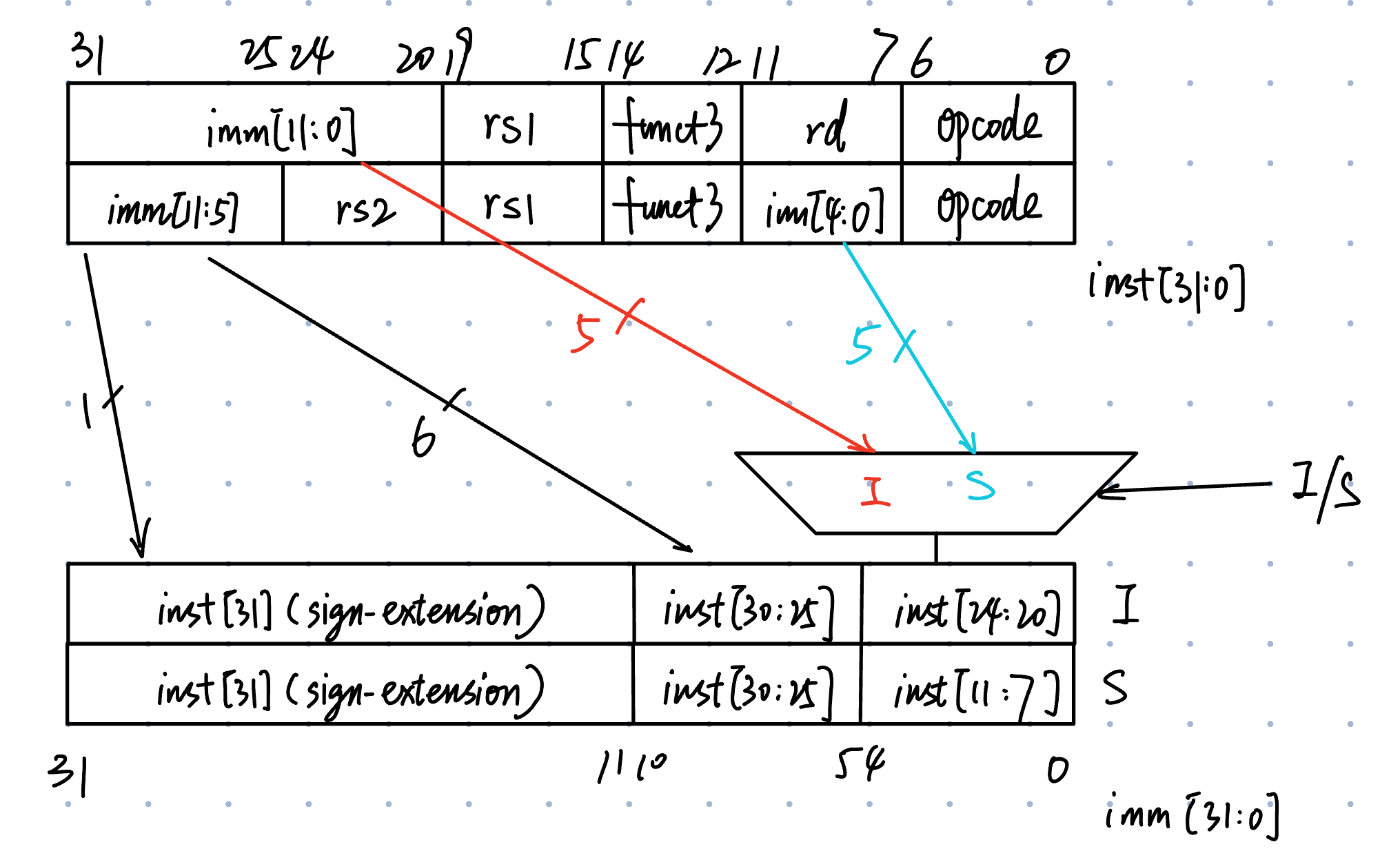

I+S Immediate Generation

  • Just need a 5-bit mux between two positions where low five bits of immediate can reside in instruction

  • Other bits in immediate are wired to fixed positions in instruction

Store Instructions

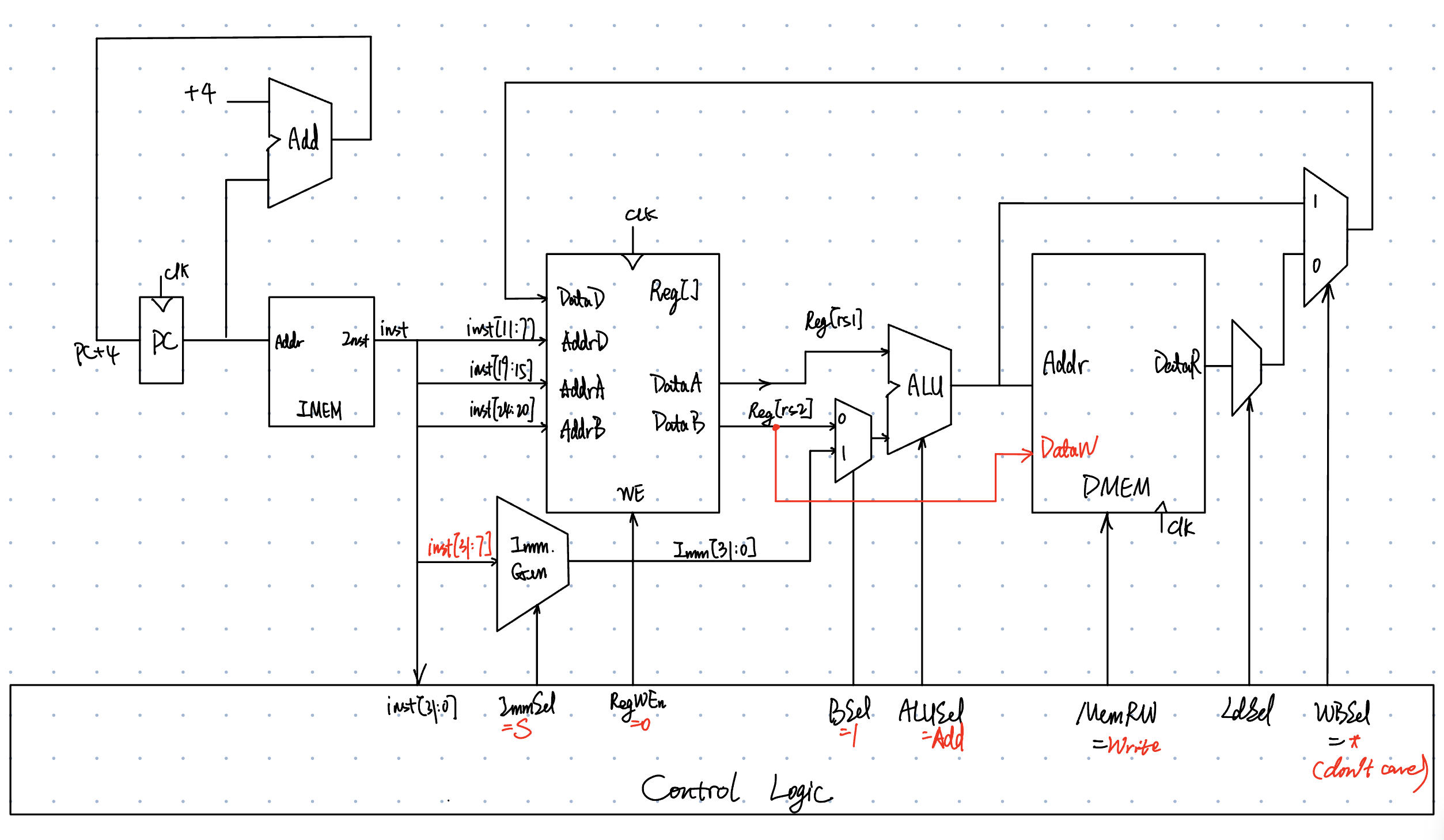

Adding sw to datapath

How to control the amount of bytes to write to memory?
