Single Cycle

We have built the complete RV32I datapath. Now we gonna design the control unit.

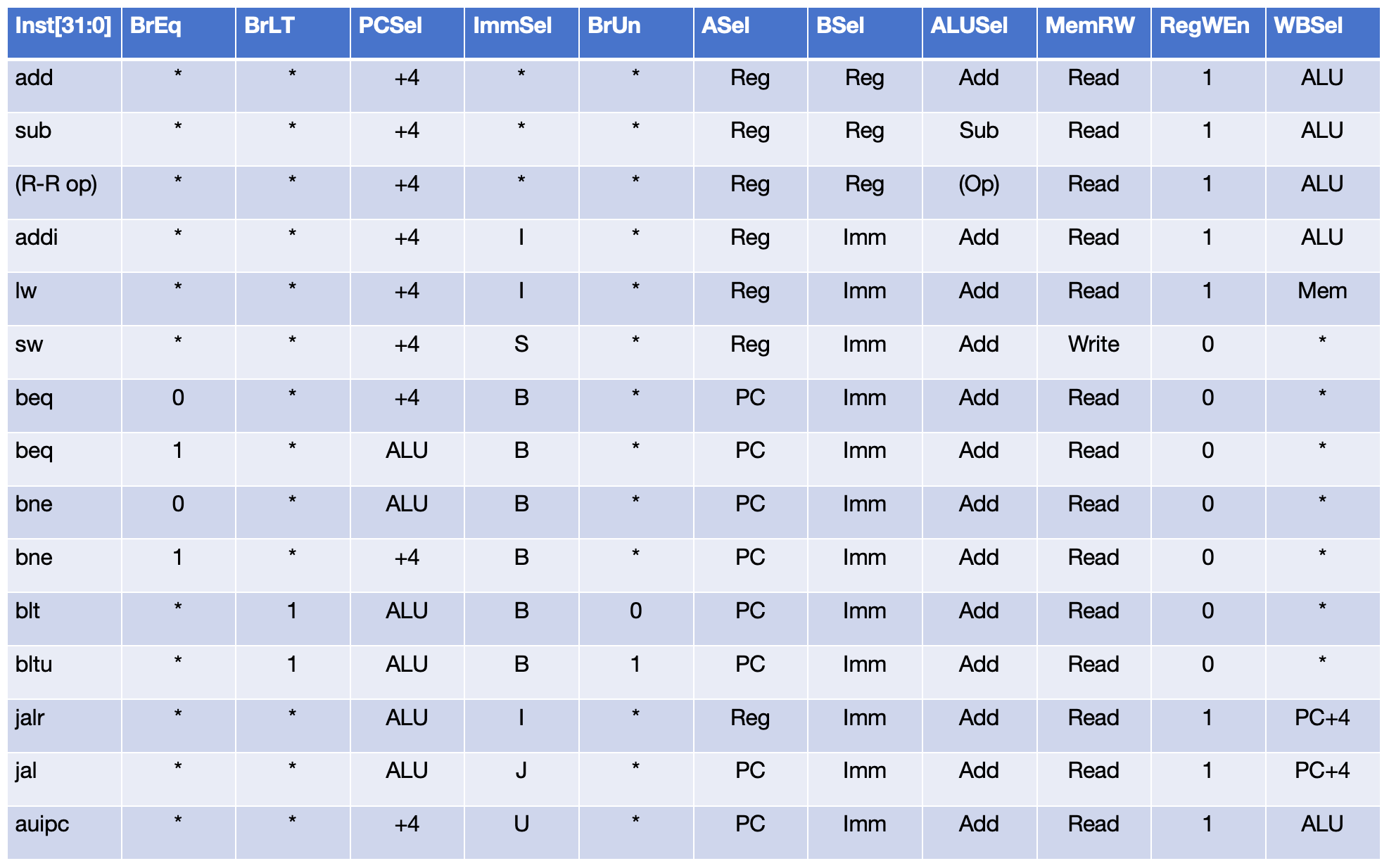

Control Unit

• Some instructions are omitted, for example, bge and bgeu.

• LdSel signal is omitted.

Timing

Think of the following questions carefully. You need to find the answer on your own through your own effort.

1. Why an instruction can be executed in single cycle in a single-cycle processor?

2. What properties are needed for instruction memory, data memory and register file?

3. What if the instruction memory or data memory or register file can only be read synchronously?

4. What's the possible critical path of single-cycle processor?

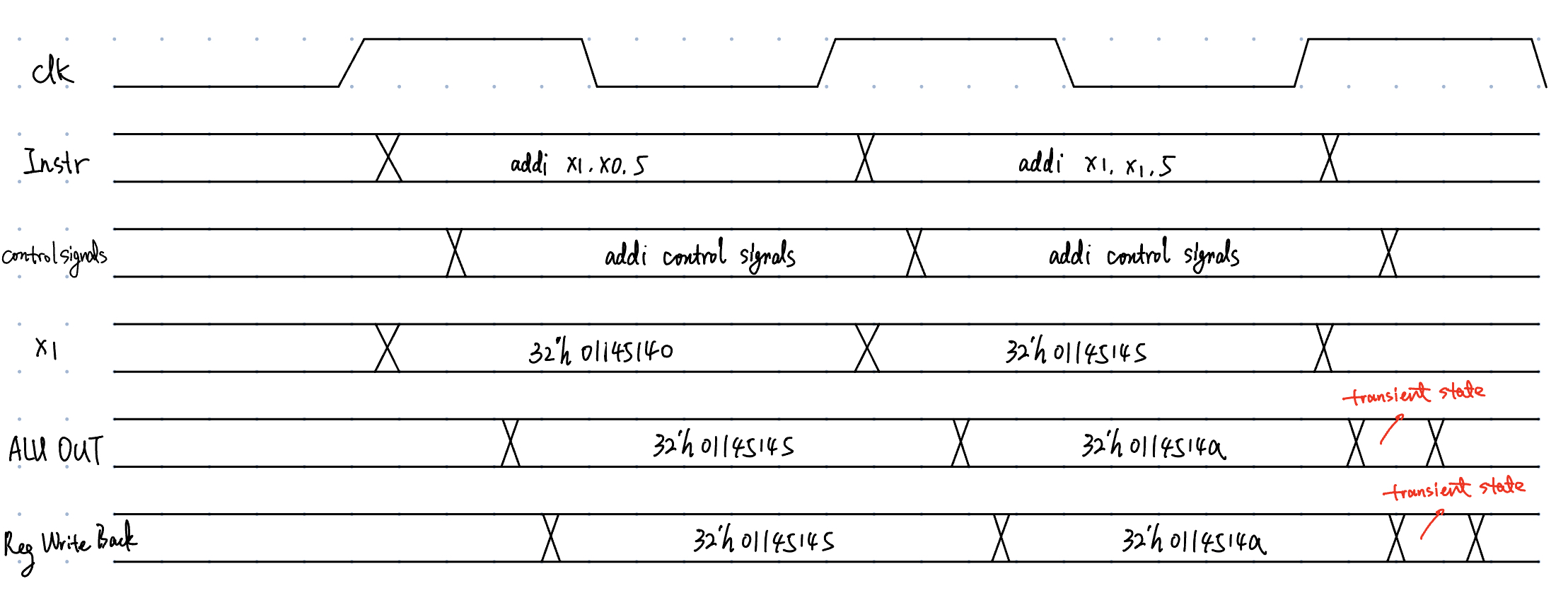

Basically, each instruction comes in at its first rising clock edge and finish at its second rising clock edge (often write its result back).
